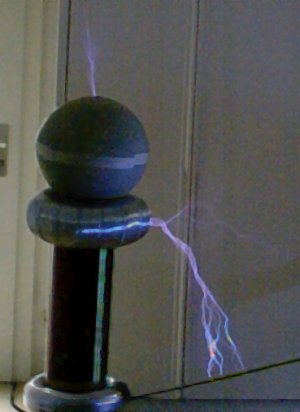

First tests with the new magnifier, this is the 5", 850turns resonator with double 12x6cm topload.
|

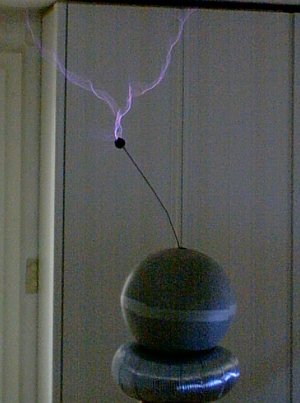

Closer view of another streamer.
|  |
 |

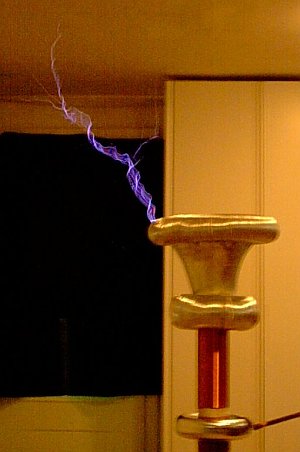

The other 600 turns 8" resonator coil with 12x6cm toroid and 30cm sphere and breakout point.
|

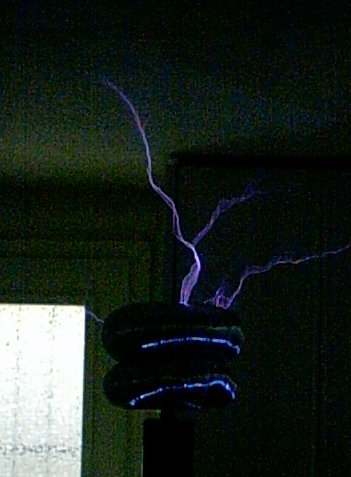

Single streamer from topload without breakout point.
|  |
 |

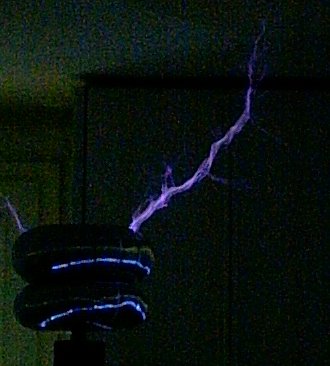

Some heavy transmission line stikes. Performance is still well below the design specs, and a lot
more tuning is indicated.... but after all it runs without setting itself on fire, what else could I ask for ;-)
|
It turned out that most of the trouble was caused by an odd power transformer error.
After I removed the defective MOT from the 6MOT stack I got streamers in the 4 to 5 feet range.
This pic was taken using a RQ-style static blown gap which workes better than I expected.

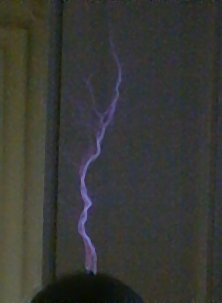

The picture quality is pretty bad, so you have to take a closer look to see how far this streamer reaches out.
Watch it working at 2KVA!
|  |
