The minicoil

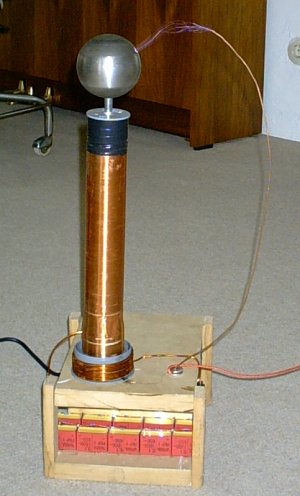

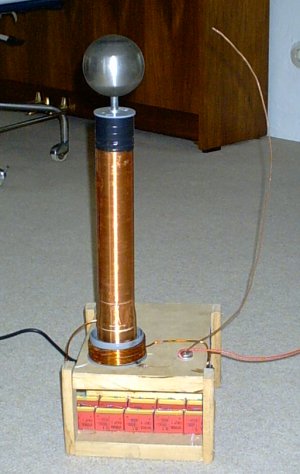

This is a small 2"(5cm) coil I built some month ago from some scrap parts.
The secondary is by far not perfect, there are 2 or 3 places where the wire overlaps and the lower part has experienced several primary arcovers.
Nevertheless it keeps running and serves me for some experiments that I would rather not do with my big coils. The primary cap is made up from 10 WIMA FKP1, 100nF units that are rated 650V AC / 1600V DC each. I had tried the MKP10 type before, but the connection between the connection wire and the cap's foil is to weak to stand the heavy discharge currents.
Power source is a 8KV, 30mA transformer and the coil employs a multi segment
static spark gap.
Primary is a helical coil made from 9 closeound turns of 1mm magnet wire. Topload is a 7cm metal sphere.

The coil in operation, producing forked streamers to a target 8 or 10 cm away. What could one expect?
Made from crap, runs like crap... ;-)
But cool for small experients anyway and pretty reliable on long runs.

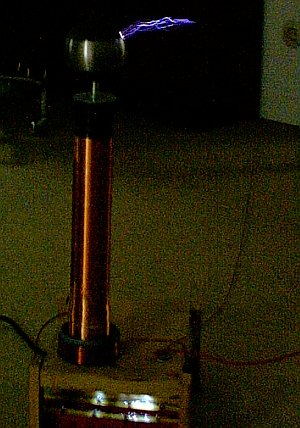

The same in the dark. The streamers appear much brigther to the eye than in the picture.

	This is a small 2"(5cm) coil I built some month ago from some scrap parts. The secondary is by far not perfect, there are 2 or 3 places where the wire overlaps and the lower part has experienced several primary arcovers. Nevertheless it keeps running and serves me for some experiments that I would rather not do with my big coils. The primary cap is made up from 10 WIMA FKP1, 100nF units that are rated 650V AC / 1600V DC each. I had tried the MKP10 type before, but the connection between the connection wire and the cap's foil is to weak to stand the heavy discharge currents. Power source is a 8KV, 30mA transformer and the coil employs a multi segment static spark gap. Primary is a helical coil made from 9 closeound turns of 1mm magnet wire. Topload is a 7cm metal sphere.
The coil in operation, producing forked streamers to a target 8 or 10 cm away. What could one expect? Made from crap, runs like crap... ;-) But cool for small experients anyway and pretty reliable on long runs.
	The same in the dark. The streamers appear much brigther to the eye than in the picture.
