Finishing the new magnifier

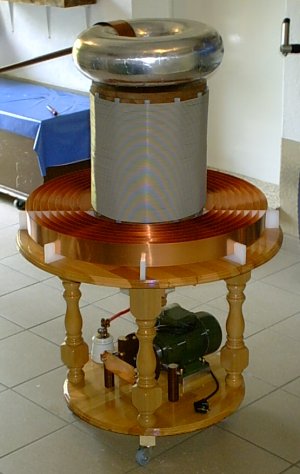

Another picture of the driver unit. This time the parts are actually mounted together and not only lashed up on my living room table ;-)
I made some "quick connect" sockets for the toroid and the secondary coil, so the components can be assembled with ease.

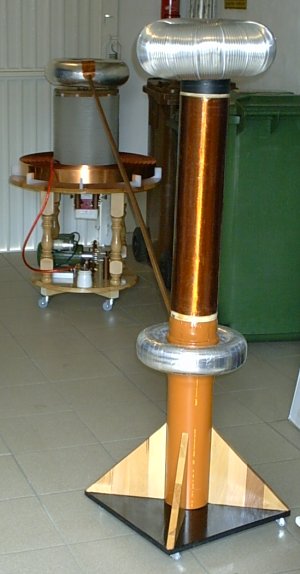

This picture shows, how the driver unit and the resonator coil fit together.
In the background the caps that are mounted hanging from the primary base can be seen.
Note the heavy 10mm² connection cable for the primary tapping point.

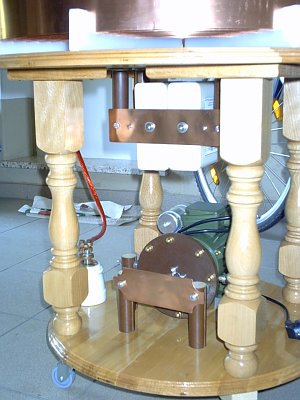

A closer view of the cap bank and its installation below the primary.



A pretty heavy connection ;-)
