Redesign of the resonator coil

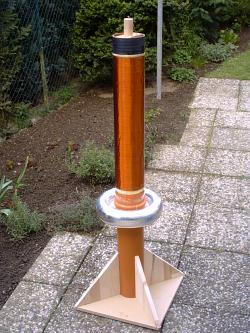

As I currently have to wait for some components I need to finish the driver unit, I decided to
use the time and build a dedicated support for the resonator coil. Until now the resonator coil was
standing on a paper bin or similar insulating objects. This not only looked ugly but was very instable
which resulted in some dents on the toroid... |
|

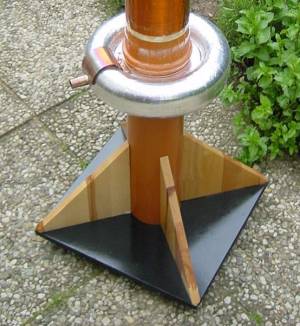

The base is finished with black and clear varnish and I made a connection point for the transmission line.
| |

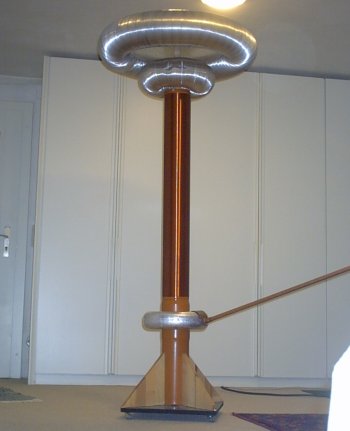

This is another secondary coil I wound for use with my tesla magnifier, which is
1300 turns on 5" diamater sewer pipe. I orignially wanted to wind it 900turns, just
like the original coil, but the devil took me and I wound until no pipe was left.
The oly coating is one layer of polyurethane varnish, mot for stability than for
insulating purposes.
|
|
